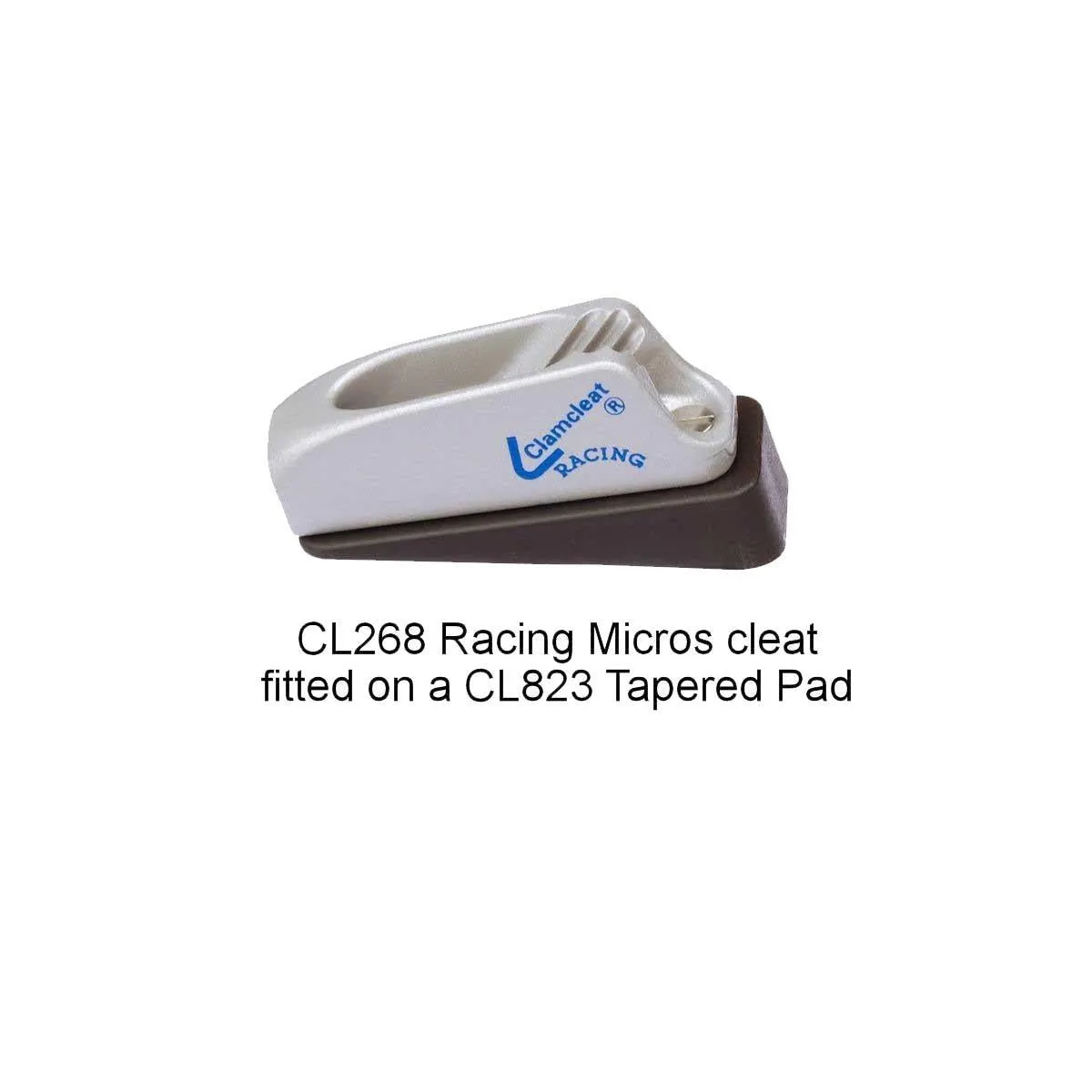

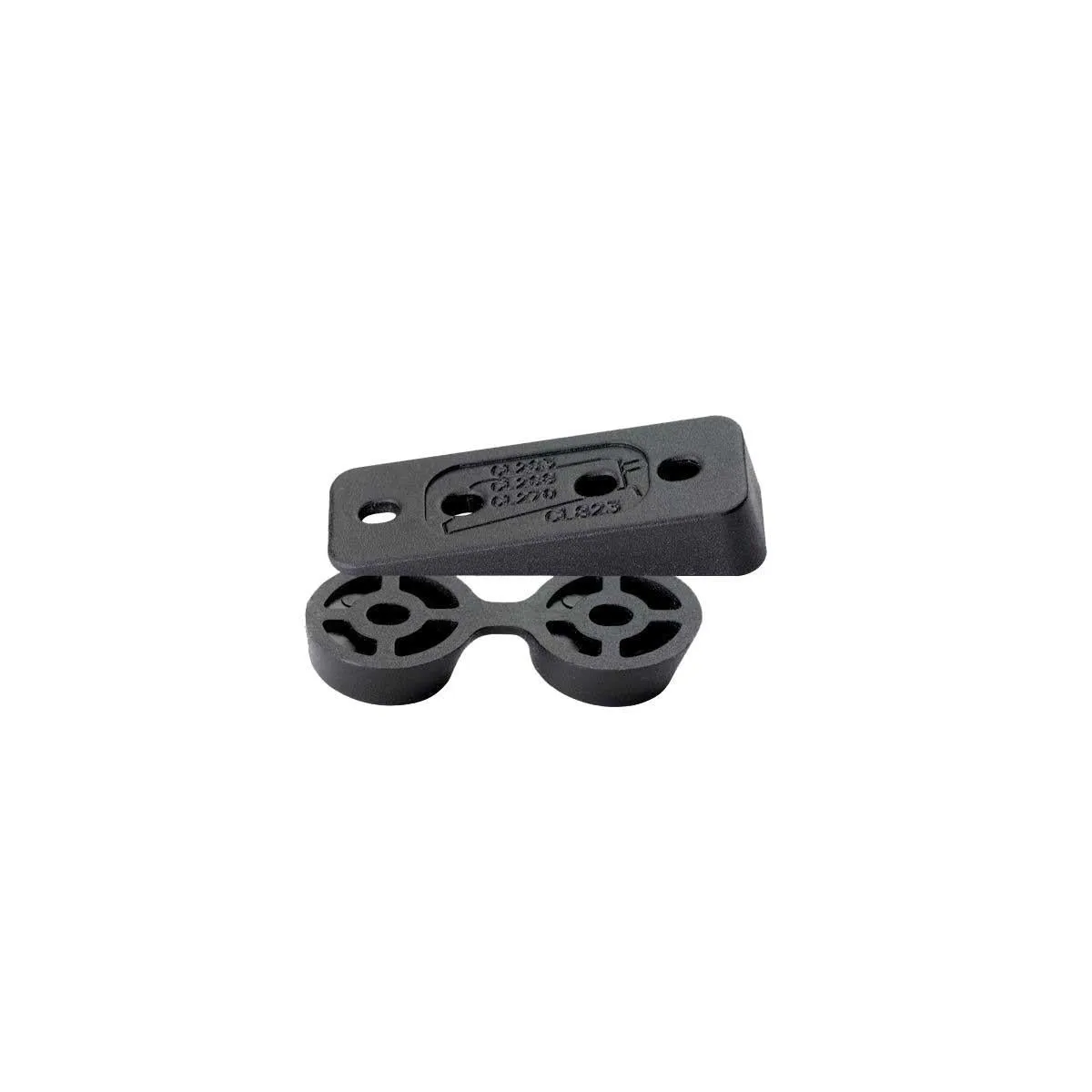

CL823 Tapered Pad for Micros Cleats
The CL823 Tapered Pad from Micro Clamcleat has been designed to improve the angle of your micro cleat. Improving its performance and efficiency by holding loaded lines at an easier-to-use angle.

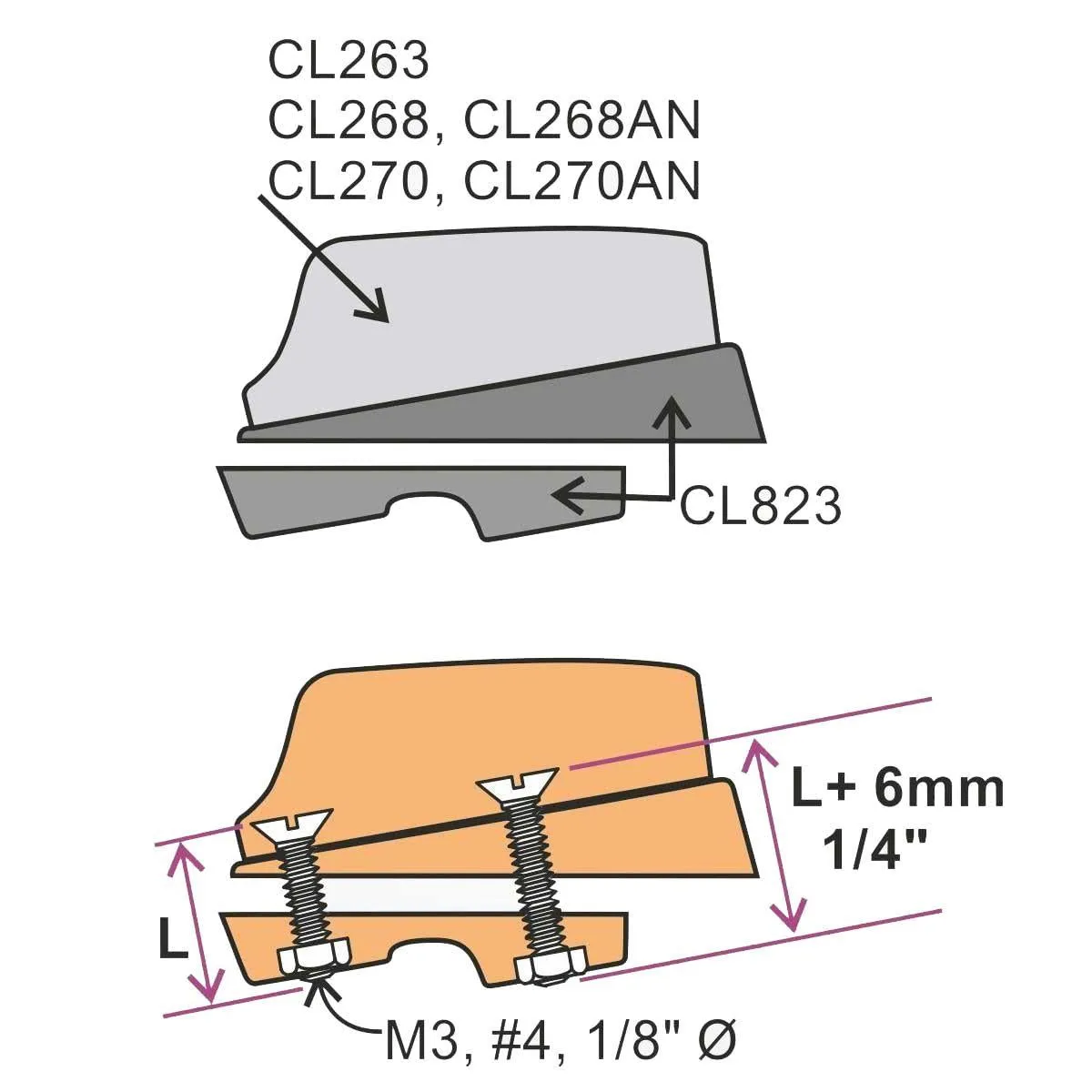

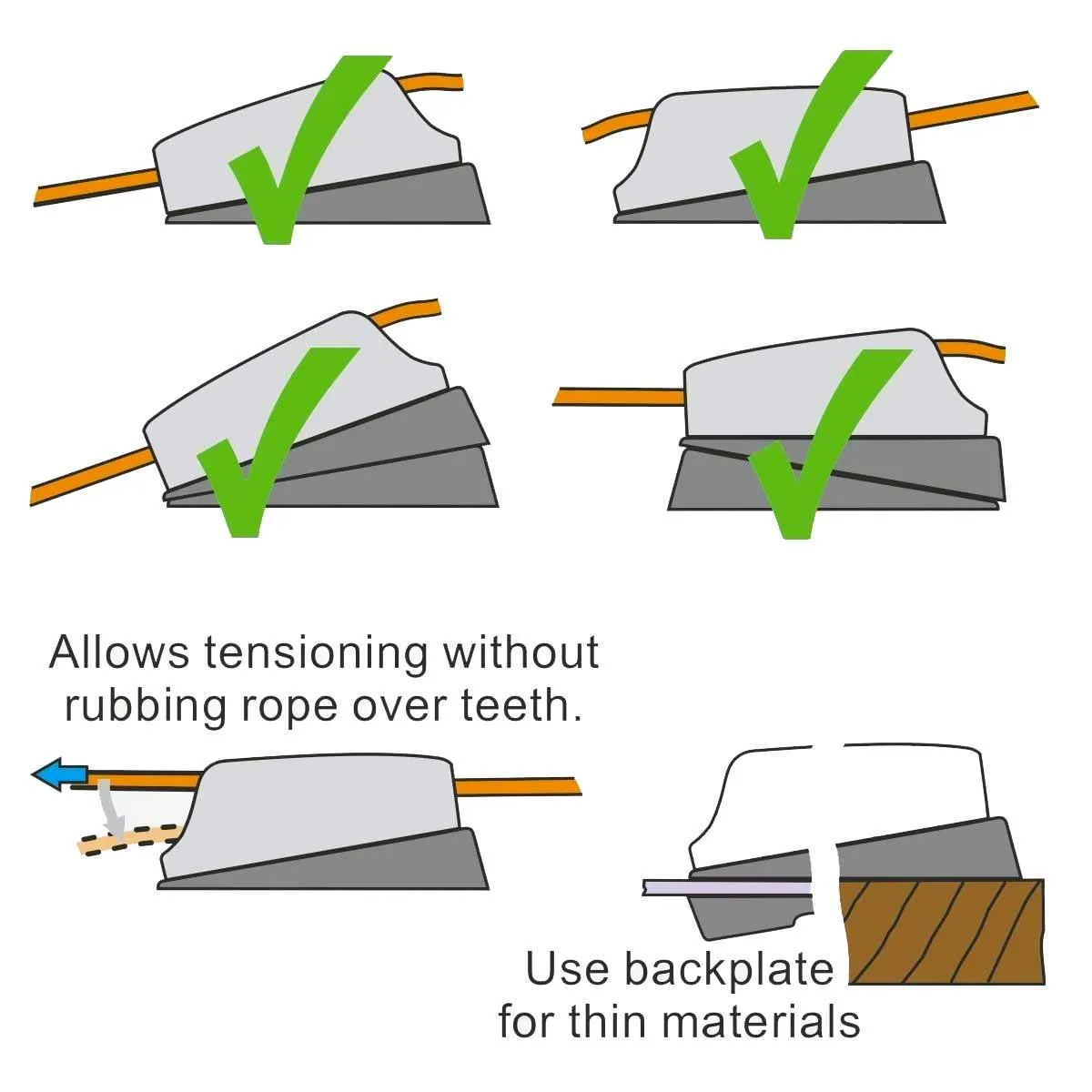

When using a cleat fitted with a pad, the operation can be used to angle the cleat upward or downward by flipping it around the opposite way.
Specifications
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | N/A | N/A | |
| Material | Polypropylene | Polypropylene | |
| Hole Centres | 24mm | 15/16" | |
| Length | 47mm | 1 13/16" | |
| Width | 18mm | 11/16" | |
| Height | 9mm | 3/8" | |
| Bolt Size | M3 | #4-40. 1/8" | |
| Screw Size | 3 | No 4 | |
| Weight | 4gms | 0.15oz |
